Actuator Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mirror holder (see POWER MIRROR REPLACEMENT ).
  2. Remove the three tamperproof TORX screws from the actuator (A) using a T10 TORX bit.

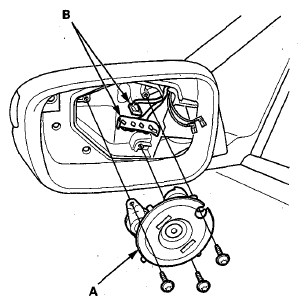

    Fig 1: Identifying Actuator And Connectors
    G08055538Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the connectors (B) and the actuator.
  4. Install the actuator in the reverse order of removal.
