Power Mirror Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the door.

Lower the door glass fully.
Remove these items:
- Front door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Front door sash inner trim (see FRONT DOOR SASH INNER TRIM REPLACEMENT )
While holding the mirror (A), pull back the door weatherstrip (B) as needed, then remove the nuts.

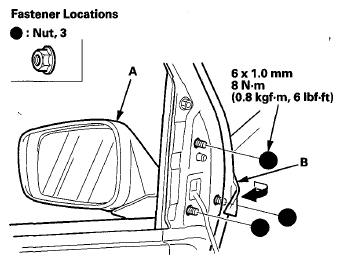

Fig 1: Fastener Locations With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the mirror (A). Take care not to scratch the door.

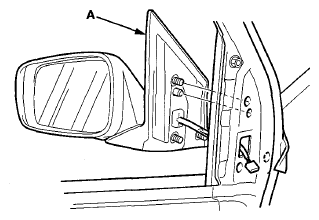

Fig 2: Identifying Side View Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal.
