Tailgate full latch switch circuit troubleshooting
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before troubleshooting, check the B-CAN DTCs. If any DTC is indicated, refer to B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ), and troubleshoot the indicated DTCs first.
- Before troubleshooting, check for DTC B1382 (see DTC B1382: POWER TAILGATE CLOSER UNIT FULL LATCH SWITCH CIRCUIT MALFUNCTION ). If indicated, troubleshoot the DTC first.
- Turn the ignition switch to ON (II).
- With the tailgate full closed, select SECURITY with the HDS, and enter the DATA LIST.
- Check the ON/OFF information of the TRUNK LID/TAILGATE SWITCH in the DATA LIST.
Is information indicator ON?
YES -Go to step 4.
NO -Go to step 6.
- Disconnect the power tailgate closer unit connector B (6P).
- Check the ON/OFF information of the TRUNK LID/TAILGATE SWITCH in the DATA LIST.
Is information indicator OFF?
YES -Faulty tailgate full latch switch; replace the tailgate latch (see TAILGATE LATCH REPLACEMENT ).
NO -Faulty rear MICU; replace the rear fuse/relay box (see REMOVAL AND INSTALLATION ).
- Turn the ignition switch to LOCK (0).
- Disconnect rear fuse/relay box connector C (42P).
- Disconnect the power tailgate closer unit connector B (6P).

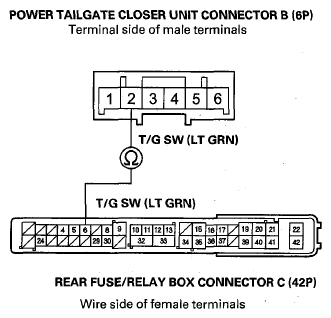

- Check for continuity between power tailgate closer unit connector B (6P) terminal No. 2 and rear fuse/relay box connector C (42P) terminal No. 6.Fig 1: Checking For Continuity Between Connector B (6P) Terminal No. 2 And Connector C (42P) Terminal No. 6
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Faulty rear MICU; replace the rear fuse/relay box (see REMOVAL AND INSTALLATION ).
NO -Repair an open or high resistance in the wire.
