Passenger Doors

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door panel.
- Front passenger's door (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Rear doors (see FRONT DOOR SIDE SILL SEAL REPLACEMENT )
Disconnect the 10P connector (A) from the actuator (B).
NOTE: The illustration shows the front passenger's door.

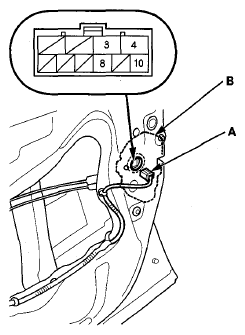

Fig 1: Locating 10P Connector And Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals.
There should be continuity between terminals No. 8 [No. 7] and No. 10 [No. 5] when the door lock knob switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

[] : Left rear door
If the continuity is not specified, replace the door latch assembly.

Front passenger's door (see FRONT DOOR LATCH REPLACEMENT )
Rear doors (see REAR DOOR LATCH REPLACEMENT )
