Rear Door Latch Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Put on gloves to protect your hands.

Raise the glass fully.
Remove the door panel
Remove the plastic cover, as needed (see step 3
Detach the rod fastener (see step 5
Disconnect the outer handle rod from the outer handle (see step 6
Remove the screws (A, B) securing the latch (C), then lower it.

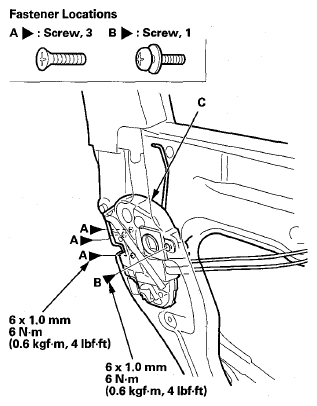

Fig 1: Latch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt, then remove the collar (A) from the rear lower channel (B).

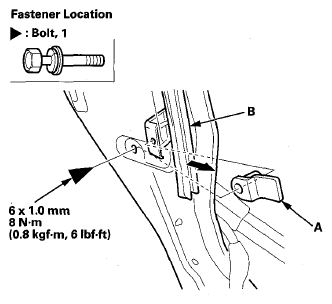

Fig 2: Collar From Rear Lower Channel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the latch (A) out from between the rear lower channel (B) and the door. Take care not to bend the outer handle rod (C), the latch cable (D) and the inner handle cable (E).

Fig 3: Removing Latch From Rear Lower Channel And Door
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the foam seals (A, B) from the latch protector (C) and the latch (D).

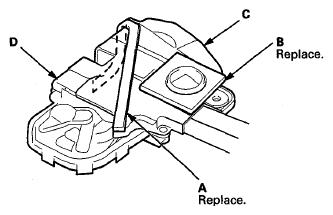

Fig 4: Identifying Foam Seals, Latch Protector And Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw, then remove the latch protector (A) from the latch (B).

Fig 5: Removing Latch Protector From Latch And Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Detach the latch cable (A) and the inner handle cable (B) from the latch (C).

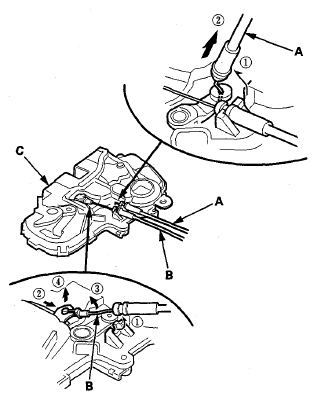

Fig 6: Detaching Latch Cable And Inner Handle Cable From Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:
- Before reinstalling the latch protector (A), clean the latch (B) and the latch protector surfaces with isopropyl alcohol where the new foam seals (C, D) will be attached.
- After reinstalling the latch protector to the latch, attach the new foam seals to the protector and the latch.
- Make sure the actuator connector is plugged in properly, and the outer handle rod is connected securely.
- Make sure the door locks and opens properly.

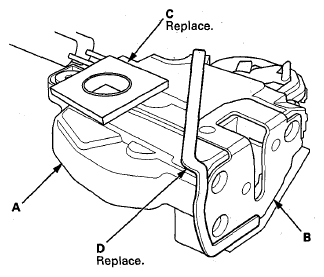

Fig 7: Identifying Latch Protector And Foam Seals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
