Driver's Door and Left Rear Door

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door panel.
  2. Disconnect the 10P connector (A) from the actuator (B).
    NOTE: The illustration shows the driver's door.

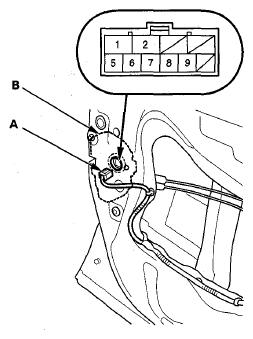

    Fig 1: Locating 10P Connector And Actuator
    G08055261Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

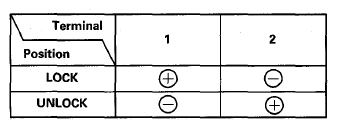

    Fig 2: Actuator Power And Ground Terminals Reference Chart
    G08055262Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the actuator does not operate as specified, replace the door latch assembly.
