Power Tailgate Latch/Ratchet Switch Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect power tailgate closer unit connector B (6P) from the power tailgate closer unit (A).

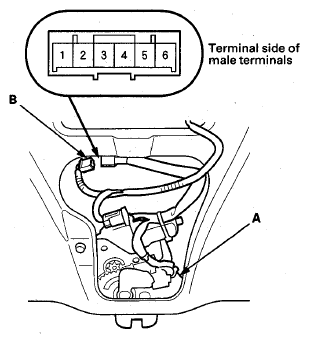

Fig 1: Identifying Power Tailgate Closer Unit And Connector Terminals (6P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each latch position according to the table.

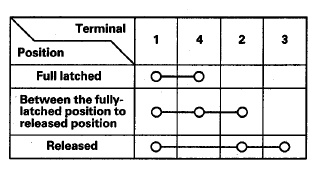

Fig 2: Power Tailgate Latch/Ratchet Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the tailgate latch assembly (see TAILGATE LATCH REPLACEMENT ).
