Power Tailgate Closer Motor Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect power tailgate closer unit connector A (2P) from the power tailgate closer unit (B).

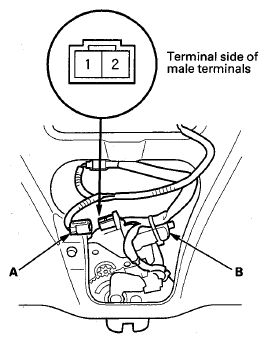

    Fig 1: Identifying Power Tailgate Closer Unit And Connector Terminals (2P)
    G08054066Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check motor operation by connecting battery power to tailgate closer unit 2P connector terminal No. 2 and ground to terminal No. 1. To prevent damage to the motor, apply battery voltage only momentarily. The motor should run.
  4. If the motor does not run or fails to run smoothly, replace the tailgate latch assembly (see TAILGATE LATCH REPLACEMENT ).
