Left Seat Belt Buckle: Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to tear or damage the seat covers.
  1. Remove the left second row seat (see SEAT CUSHION BLOWER MOTOR ).
  2. From under the seat cushion, release the hooks of the back cover carpet from the seat cushion frame, then pull the carpet back (see step 2 under SECOND ROW SEAT DISASSEMBLY/REASSEMBLY ).
  3. With seat heater: Disconnect the seat cushion heater connector, and remove the wire ties (see step 3 under SECOND ROW SEAT DISASSEMBLY/REASSEMBLY ).
  4. Remove these items:
  5. Remove the seat cushion from the left second row seat (see step 10 under SECOND ROW SEAT DISASSEMBLY/REASSEMBLY ).
  6. Remove the center anchor bolt (A), and remove the seat belt buckle (B).

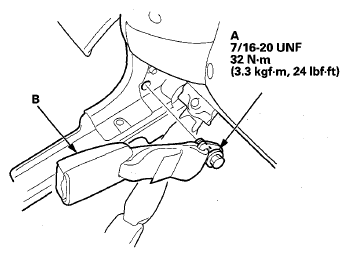

    Fig 1: Seat Belt Buckle And Center Anchor Bolt With Torque Specification
    G08054366Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the buckle in the reverse order of removal, and note these items:
    • Apply medium strength liquid thread lock to the anchor bolt before reinstallation.
    • Assemble the washers, the collar and the bushing on the center anchor bolt as shown.
