Center Second Row Seat Belt

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.

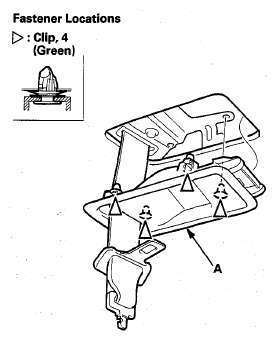

Detach the clips, and remove the seat belt cover (A).

Fig 1: Identifying Seat Belt Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).

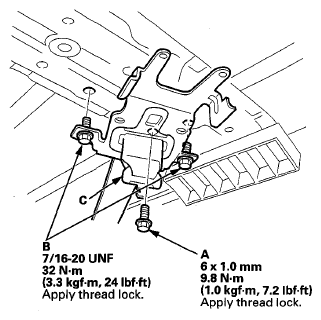

Remove the upper anchor mounting bolt (A) and the upper anchor bolts (B), then remove the upper anchor (C).

Fig 2: Upper Anchor And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

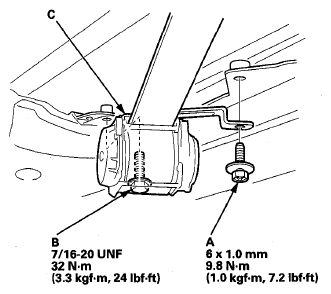

Remove the retractor mounting bolt (A) and the retractor bolt (B), then remove the retractor (C).

Fig 3: Retractor And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center second row seat belt and retractor in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Apply medium strength liquid thread lock to the anchor bolts before reinstallation.
- Check that the retractor locking mechanism functions (see Third Row Seat Belt Replacement ).
- Before installing the upper anchor bolt, make sure there are no twists or kinks in the seat belt.
