Section 142 (Seat Belts): Inspection: Retractor

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40°. Do not attempt to disassemble the retractor.
Front

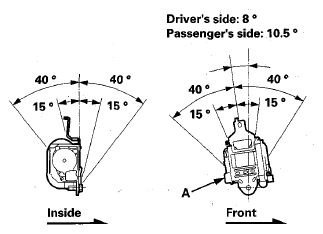

Fig 1: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Second row

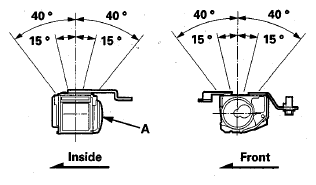

Fig 2: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Second Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Center Second row

Fig 3: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Center Second Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Third row

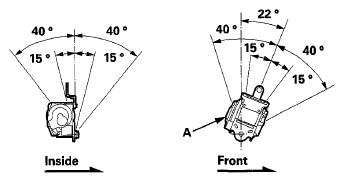

Fig 4: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Third Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.
