Center Second Row Seat Belt Detachable Anchor

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to tear or damage the seat covers.
  1. Remove the left second row seat (see SEAT CUSHION BLOWER MOTOR ).
  2. Remove the seat belt detachable anchor (A) from the elastic strap (B).
    Fig 1: Identifying Seat Belt Detachable Anchor And Elastic Strap
    G08054375Courtesy of AMERICAN HONDA MOTOR CO., INC.

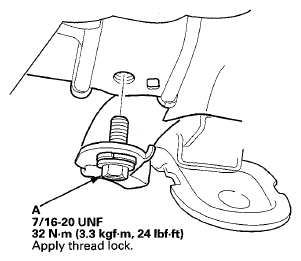

  3. Remove the lower anchor bolt (A).
    Fig 2: Lower Anchor Bolt With Torque Specifications
    G08054376Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the seat belt detachable anchor (A).
    Fig 3: Identifying Seat Belt Detachable Anchor
    G08054377Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the detachable anchor in the reverse order of removal, and apply medium strength liquid thread lock to the anchor bolt before reinstallation.
