Wiper Motor Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood. Remove the caps, nuts (A), and the windshield wiper arms (B).

Fig 1: Caps, Nuts And Windshield Wiper Arms With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cowl covers (see COWL COVER REPLACEMENT ).
Disconnect the 5P connector (A) from the wiper motor.

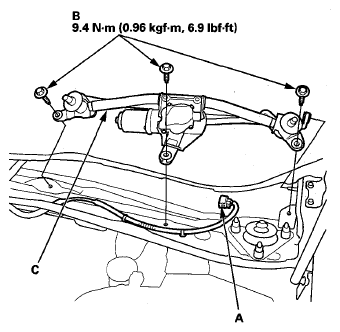

Fig 2: Wiper Motor Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three bolts (B) and the wiper linkage assembly (C).
Make sure to note the mark on the link and linkage that show the original adjustment, then separate the windshield wiper linkage (A) from the wiper motor (B).

Fig 3: Windshield Wiper Linkage And Wiper Motor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal, and note these items:
- Align the marks on the link and the linkage to install the linkage to its original adjustment.
- Apply multipurpose grease to the moving parts.
- Before installing the wiper arms, turn the wiper switch ON, then OFF to return the shafts to the park position.
- If necessary, replace any damaged clips.
After installation, adjust the wiper arms
