Cowl Cover Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the cowl cover or the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the windshield wiper arms (see WIPER MOTOR REPLACEMENT ).

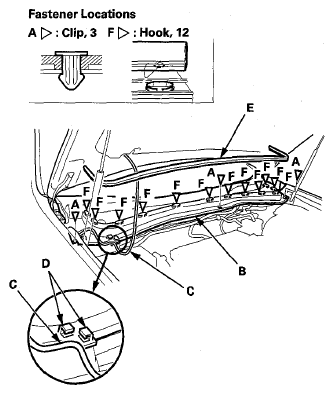

Using a trim tool, remove the clips (A) from the cowl cover (B).

Fig 1: Identifying Cowl Cover Fastener Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the windshield washer tube (C) from the hooks (D).
If necessary, remove the hood rear seal (E) from all of the hooks (F).

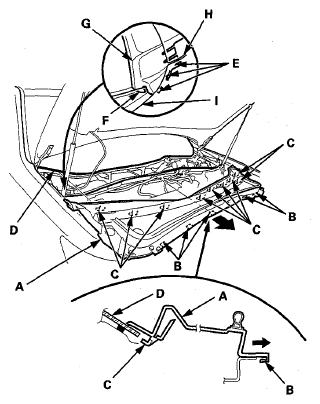

Pull the cowl cover (A) forward to release the hooks (B, C) from the windshield (D) and the body. From both hood hinge areas, release the hooks (E, F) of the hood hinge cover (G) from the front fender (H) and the roof molding (I).

Fig 2: Locating Cowl Cover, Hooks And Windshield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cowl cover.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
