Front Passenger's Ambient Light Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Passenger's dashboard undercover (see Passenger's DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), then disconnect the 2P connector from the front Passenger's ambient light (A).

    Front Passenger's Ambient Light: LED

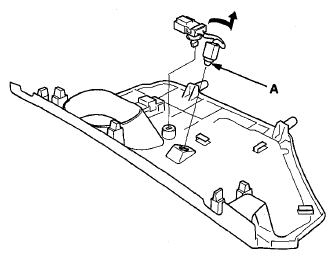

    Fig 1: Removing Passenger's Dashboard Undercover And 2P Connector From Front Passenger's Ambient Light
    G08055371Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the socket 45 ° counterclockwise to remove the light.
  3. Install the light in the reverse order of removal.
