Front Door Outer Molding Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

If you remove the door outer molding, replace it with a new one because it will bend during removal.
Put on gloves to protect your hands.
Take care not to scratch the door.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the power mirror (see POWER MIRROR REPLACEMENT ).
Remove the door outer molding (A):
1. Push out the rear clip (B).
2. While removing the upper edge of the door outer molding from the edge of the sash, cut the double-sided adhesive tape (C) with a utility knife, then remove the molding.

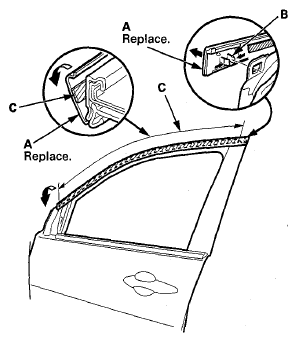

Fig 1: Identifying Door Outer Molding And Double-Sided Adhesive Tape Cutting Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Scrape off the remaining double-sided adhesive tape from the sash, then clean the sash surface with a sponge dampened in isopropyl alcohol.
Install a new door outer molding in the reverse order of removal, and note these items:
- Push the clip and the adhesive areas into place securely.
- Make sure the upper and lower sides of the molding are catching the edges of the sash properly.
