Rear Bumper Skid Trim Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
Remove all of the bolts (A) and the screws (B). Pry all of the hooks (C) up with a trim tool, then remove the rear bumper skid trim (D) from the rear bumper (E).

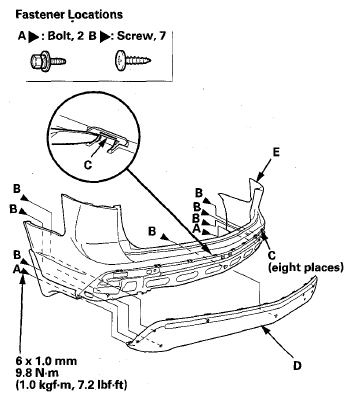

Fig 1: Rear Bumper Skid Trim Bolts And Screws With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and push the hooks into place securely.
