Rear Bumper Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Have an assistant help you when removing and installing the rear bumper.
Take care not to scratch the rear bumper or the body.

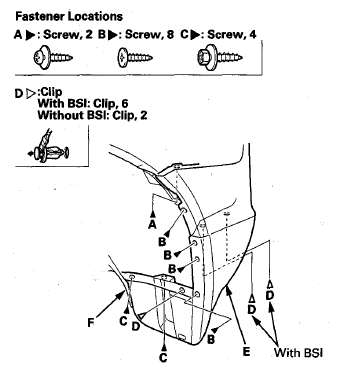

From the rear wheel arches on both sides, remove the screws (A, B, C) and the clips (D) securing the rear bumper (E), and rear inner fender cover (F).

Fig 1: Identifying Rear Inner Fender Cover Screws And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

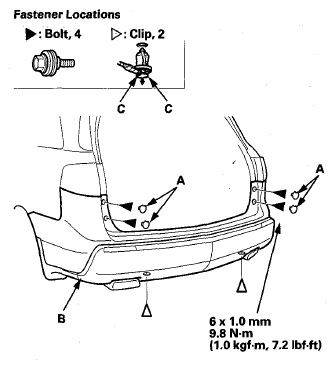

Remove the caps (A), then remove the bolts, and detach the clips securing the rear bumper (B).
NOTE: To release the clips, pry up on the center pin at the notch (C).

Fig 2: Identifying Rear Bumper Caps And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

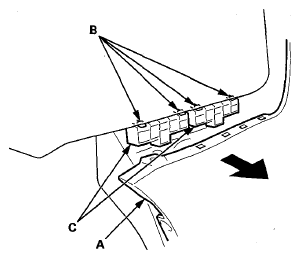

Pull on the rear bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacers (C).

Fig 3: Pulling Rear Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

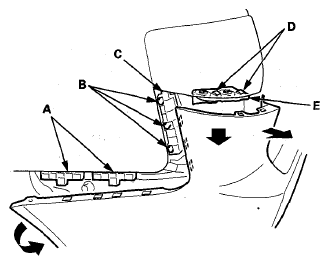

With the help of an assistant, while pulling the wheel arch area away from the side spacers (A), pull the rear bumper to release the bumper from the hooks (B) on the side upper spacer (C), and from the hooks (D) on the side bracket (E).

Fig 4: Pulling Wheel Arch Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

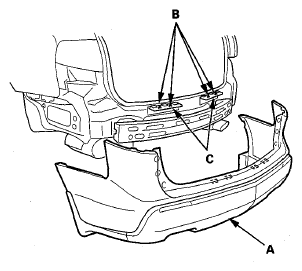

With the help of an assistant, pull out on the rear bumper to release the bumper (A) from the hooks (B) on both upper brackets (C).
NOTE: If equipped with back-up sensors, disconnect the connector.

Fig 5: Identifying Rear Bumper, Upper Brackets And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bumper in the reverse order of removal, and note these items:
- Make sure the rear bumper engages the hooks (of both the side bracket, side spacers, and side upper spacers) on each side securely.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
