Rear Bumper Reflector Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to prevent damage.
Take care not to scratch the rear bumper and body.

Remove the rear bumper skid trim (see REAR BUMPER SKID TRIM REPLACEMENT ).
Push out the clip (A), release the hook (B), then remove the rear bumper reflector (C).

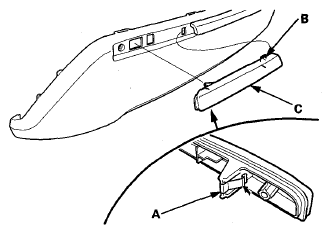

Fig 1: Identifying Rear Bumper Reflector, Hook And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reattach the hook to the rear bumper first, and push the clip into place securely.
