Rear Bumper Air Spoiler Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the rear bumper.

Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
Remove the bolts and the clips, then remove the rear bumper air spoiler (A) from the rear bumper (B).

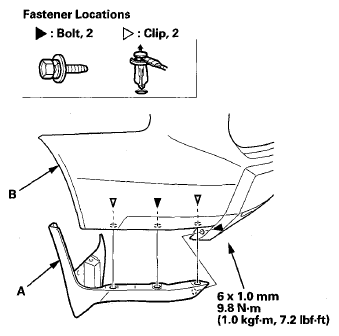

Fig 1: Rear Bumper Air Spoiler With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the spoiler in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
