Third Row Seat Pivot Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
The left third row seat is shown; the right third row seat is similar.

Remove the right third row seat (see THIRD ROW SEAT REMOVAL/INSTALLATION ).
Remove the seat-back (see THIRD ROW SEAT DISASSEMBLY/REASSEMBLY ).
Remove the screws securing the seat-back recline lever (see step 3 under Third Row Seat-Back Recline Lever Replacement ).
Remove the back cover (see step 4 under Third Row Seat-Back Recline Lever Replacement ), then release the hooks from behind the seat-back, as needed (see step 7 under Third Row Seat Cover Replacement ).
If necessary, remove the screw, then remove the pivot cover (A).

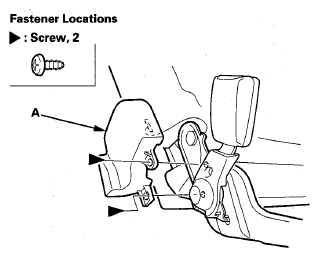

Fig 1: Identifying Pivot Cover And Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the seat pivot (A).

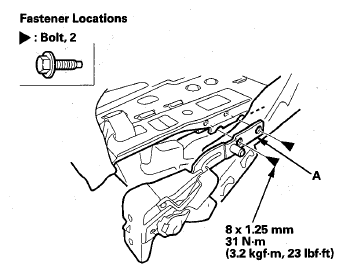

Fig 2: Seat Pivot And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the pivot in the reverse order of removal.
