Third Row Seat-Back Recline Lever Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to kink the seat-back recline cable.

Remove the left third row seat or right third row seat (see THIRD ROW SEAT REMOVAL/INSTALLATION ).
Remove the seat-back (see THIRD ROW SEAT DISASSEMBLY/REASSEMBLY ).

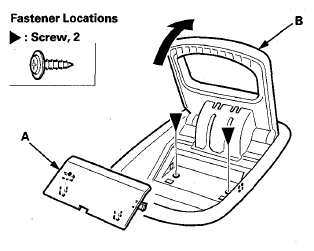

Pry out the lid (A), and remove the screws securing the third row seat-back recline lever (B).

Fig 1: Removing Third Row Seat-Back Recline Lever And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the back cover (see step 4 under Third Row Seat-Back Recline Lever Replacement ), then release the hooks from behind the seat-back, as needed (see step 7 under Third Row Seat Cover Replacement ).
Remove the outer latch cover (see step 5 under Third Row Seat Latch Replacement ).
Disconnect the seat-back recline cable (see step 7 under Third Row Seat Latch Replacement ).

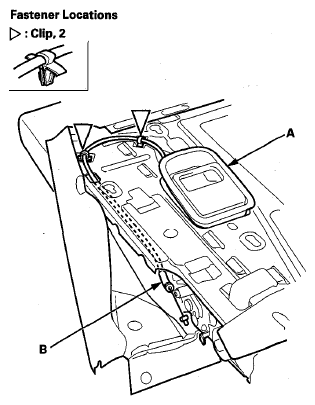

Remove the clips, then remove the seat-back recline lever (A) with the recline cable (B).

Fig 2: Identifying Seat-Back Recline Lever, Recline Cable And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lever in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the recline cable is connected securely.
- Make sure the seat unlatches properly and latches securely.
