Second Row Seat Armrest Cover Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to tear the seams or damage the seat covers.
  1. Remove the armrest (see SECOND ROW SEAT ARMREST REPLACEMENT  ).
  2. Remove the armrest beverage holder from the armrest (see SECOND ROW SEAT ARMREST BEVERAGE HOLDER REPLACEMENT  ).
  3. Unzip the armrest cover (A).

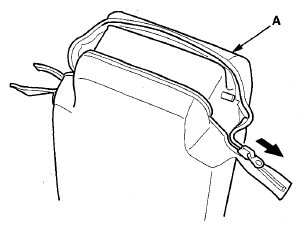

    Fig 1: Opening Armrest Cover
    G08053530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Release the hooks (A).
    Fig 2: Identifying Hooks
    G08053531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Pull back the armrest cover (A) all the way around, then separate the armrest cover and pad (B).
    Fig 3: Pulling Back Armrest Cover
    G08053532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the cover in the reverse order of removal, and to prevent wrinkles, make sure the material is stretched evenly over the pad before securing the hooks.
