Second Row Seat Armrest Beverage Holder Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to tear the seams or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

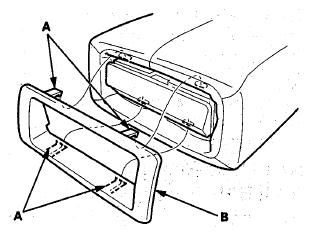

Detach the hooks (A), then remove the beverage holder cover (B).

Fig 1: Identifying Beverage Holder Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

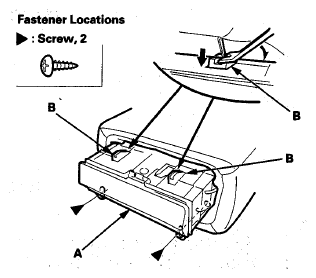

Remove the screws, then pull out on the beverage holder (A) to release the hooks (B).

Fig 2: Pulling Beverage Holder To Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the beverage holder in the reverse order of removal.
