Seat-back Blower Motor

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:
  • Take care not to tear the seams or damage the seat covers.
  • Put on gloves to protect your hands.
  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
  2. Remove the back panel (see step  3 ).
  3. Disconnect the seat-back ventilation blower motor duct (see step  4 ).
  4. Release the wire tie (A), disconnect the blower motor connector (B) and remove the screws, then remove the blower motor (C) from the seat-back frame.

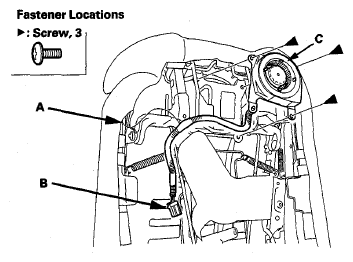

    Fig 1: Identifying Blower Motor Connector, Wire Tie And Screws
    G08053461Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the blower motor in the reverse order of removal, and make sure the blower motor connector is plugged in properly.
