XM Self-Diagnosis: Notes
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This diagnostic screen checks the audio unit's XM radio reception level. To check the XM reception, do the following:
- Turn the ignition switch to ON (II).
- Select XM1 mode.
- Make sure the audio system is turned off, then turn the ignition switch to LOCK (0).
- Push and hold the preset No. 3 and No. 6 buttons.
- Turn the ignition switch to ON (II).
- Continue holding the buttons for about 5 seconds, then release the buttons.
- Press and release preset No. 1 button to read the error code.

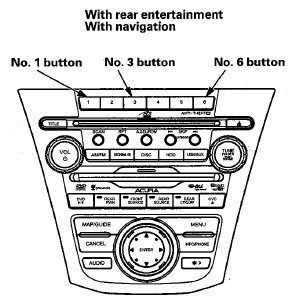

With rear entertainment With navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.

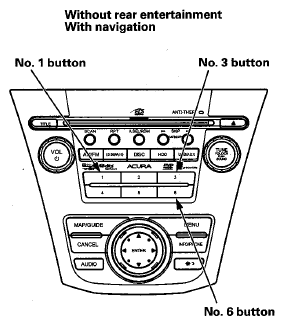

Without rear entertainment With navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.

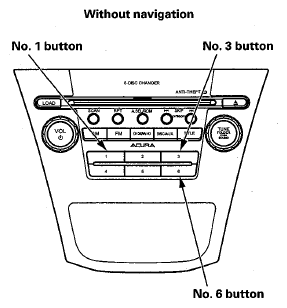

Without navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Error Code No. Displayed Error Code Title Displayed Solution ERROR 00 NO ERROR System is normal. ERROR 04 NO SIGNAL Move the vehicle to an open area, and recheck. ERROR 05 NO XM ACTIVATION The subscription may have expired. Contact XM Radio at 800-852-9696. ERROR 06 NO XM AUTHORIZATION Contact XM Radio at 800-852-9696. ERROR 14 ANTENNA NOT CONNECTED / NO SIGNAL Refer to Error code: XM ANTENNA is displayed; - With AcuraLink (see ERROR CODE: XM ANTENNA IS DISPLAYED (WITH ACURALINK) )
- Without AcuraLink (see ERROR CODE: XM ANTENNA IS DISPLAYED (WITHOUT ACURALINK) )
ERROR 24 ANTENNA SHORTED / NO SIGNAL Refer to Error code: XM ANTENNA is displayed; - With AcuraLink (see ERROR CODE: XM ANTENNA IS DISPLAYED (WITH ACURALINK) )
- Without AcuraLink (see ERROR CODE: XM ANTENNA IS DISPLAYED (WITHOUT ACURALINK) )
ERROR 55 HARDWARE FAILURE (CONDITIONAL ACCESS FAILURE) There is an internal failure. Replace the AcuraLink control unit (XM receiver) (see ACURALINK CONTROL UNIT (XM RECEIVER) REMOVAL/INSTALLATION ) or the XM receiver (see XM RECEIVER REMOVAL/INSTALLATION ). ERROR 65 HARDWARE FAILURE (CONDITIONAL ACCESS FAILURE) There is an internal failure. Replace the AcuraLink control unit (XM receiver) (see ACURALINK CONTROL UNIT (XM RECEIVER) REMOVAL/INSTALLATION ) or the XM receiver (see XM RECEIVER REMOVAL/INSTALLATION ). - To end the XM self-diagnosis, turn the ignition switch to LOCK (0).
