Hood Latch Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
Take care not to kink the hood opener cable.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
Disconnect the hood latch switch connector (A), then remove the connector clip from the body.

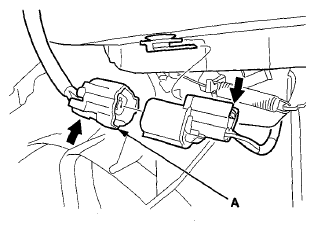

Fig 1: Locating Hood Latch Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the hood latch (A) from the body.

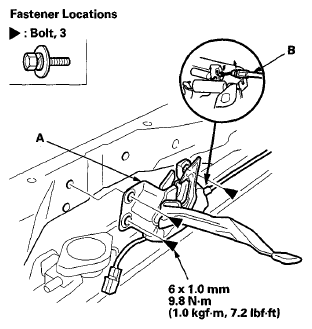

Fig 2: Hood Latch Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hood opener cable (B) from the hood latch. Take care not to kink the cable.
Install the latch in the reverse order of removal, and note these items:
- Apply multipurpose grease to the hood latch as indicated by the arrows.
- Make sure the hood opener cable is connected properly and the hood latch switch connector is plugged in properly.
- Make sure the cable actuates the latch before you close the hood.
- Adjust the hood latch alignment (see step 4 under Hood Adjustment ).
- Make sure the hood opens properly and locks securely.

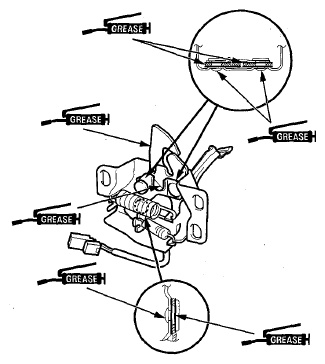

  Fig 3: Identifying Multipurpose Grease Applying Area To Hood Latch
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
