Hood Adjustment

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT )
- Hood support strut, both sides (see HOOD SUPPORT STRUT REPLACEMENT )
Slightly loosen each bolt (A).

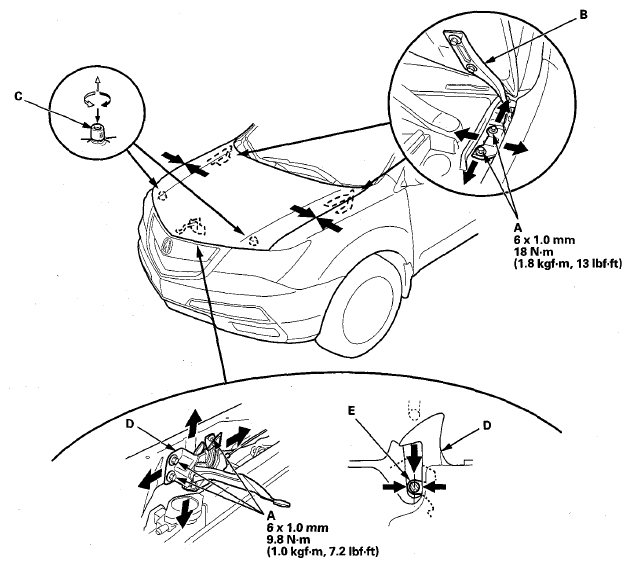

Fig 1: Hood Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Adjust the hood alignment in this sequence:
- Adjust the hood right and left, as well as forward and rearward, by using the elongated holes in the hood hinges (B).
- Turn the hood edge cushions (C), as necessary, to make the hood fit flush with the body at the front and side edges.
Adjust the hood latch (D) to obtain the proper height at the forward edge, and move the hood latch right or left until the striker (E) is centered in the hood latch.
Tighten the bolts to the specified torque.
Check that the hood opens properly and closes securely.
Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.
Apply multipurpose grease to the hood latch and hood hinges as indicated by the arrows.

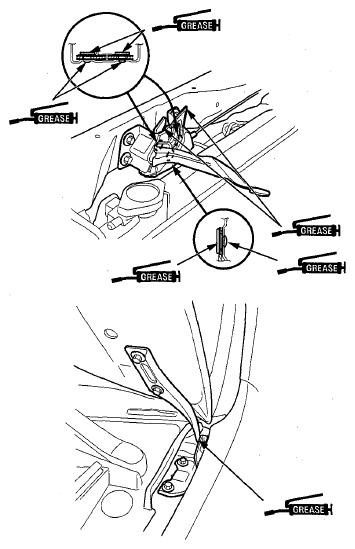

Fig 2: Identifying Multipurpose Grease Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall all of the removed parts.
