Hood Support Strut Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use eye protection when prying support strut clip.

With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) of the support strut (C) on the hood and the body, then release the support strut from the pivot bolts (D). Do not remove the clips from the support strut.

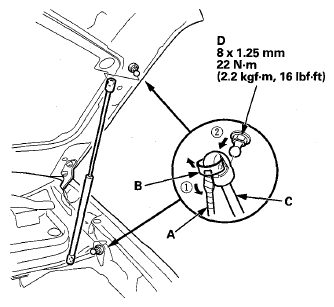

Fig 1: Hood Support Strut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply multipurpose grease to each pivot.
Set the clips (A) on the original position, then reattach the support strut (B) on the pivot bolts (C) by pushing on the support strut.

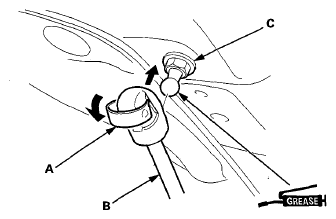

Fig 2: Pushing Support Strut And Pivot Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
