Rear Bumper Molding Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to prevent damage.
Take care not to scratch the rear bumper.

Remove the rear bumper (see FRONT BUMPER SKID TRIM REPLACEMENT ).
Remove the rear bumper skid trim (see REAR BUMPER SKID TRIM REPLACEMENT ).
Remove the screws and detach the hooks (A), then remove the rear bumper molding (B).

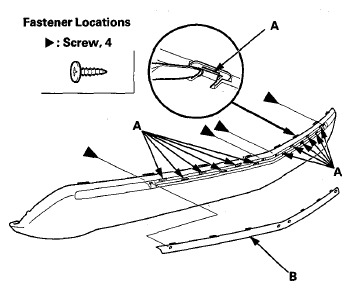

Fig 1: Locating Screws, Hooks And Rear Bumper Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the molding in the reverse order of removal, and push the hooks into place securely.
