Side Impact Sensor (First) Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), then wait at least 3 minutes before starting work.
  2. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  3. Remove the lower B-pillar lower trim panel (see B-PILLAR UPPER/LOWER TRIM ).
  4. Disconnect the floor wire harness 4P connector (A) from the side impact sensor (first) (B).

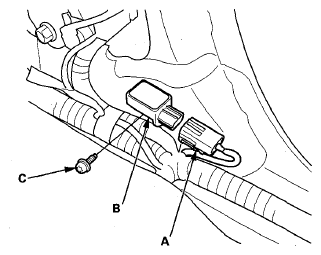

    Fig 1: Identifying Floor Wire Harness 4P Connector, Side Impact Sensor And TORX Bolt
    G08058532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the TORX bolt (C) using a TORX T30 bit, then remove the side impact sensor (first).
