ODS Unit Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), then wait at least 3 minutes before starting work.
  2. Remove the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  3. Pull out the seat-back cover/pad (see FRONT SEAT-BACK COVER REPLACEMENT ).
  4. Remove the cover (A), then disconnect the ODS unit 18P connector (B) and sensor connectors (C) from the ODS unit (D).

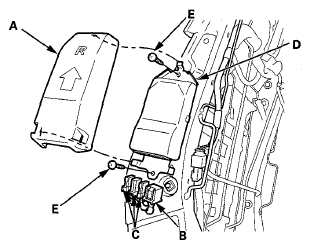

    Fig 1: Identifying ODS Unit, ODS Unit 18P Connector, Sensor Connectors, Cover And Screws
    G08058542Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the two screws (E) and the ODS unit.
