Taillight/Brake Light LED Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the taillight Taillight
  2. Remove the four screws (A) and the back cover (B) from the taillight (C).

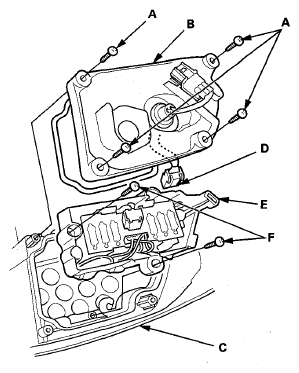

    Fig 1: Identifying Taillight/Brake Light LED And Related Components
    G08055333Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully disconnect the connector (D) from the taillight/brake light LED (E).
  4. Remove the two screws (F) and the taillight/brake light LED from the taillight housing.
  5. Inspect the gasket; if the gasket is distorted or compressed, replace it.
  6. Install a new LED in the reverse order of removal.
