Taillight Replacement: Taillight

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the covers (A) and two bolts from the taillight (B).

    Rear Turn Signal Light: 21 W

    Rear Side Marker Light: 3 CP

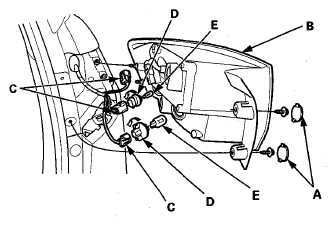

    Fig 1: Identifying Taillight And Related Components
    G08055331Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Carefully pull out the taillight.
  3. Disconnect the connectors (C) from the taillight.
  4. Turn the bulb sockets (D) 45 ° counterclockwise to remove the bulbs (E).
  5. Install the light in the reverse order of removal.
