License Plate Light Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT ).
  2. Pull the license plate light assembly out, and disconnect the 2P connector (A) from the light.

    License Plate Light: 3 CP

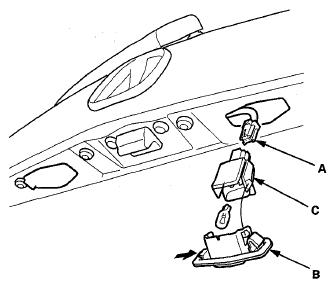

    Fig 1: Identifying License Plate Light And Related Components
    G08055334Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Separate the lens (B) and housing (C), then remove the bulb.
  4. Install the light in the reverse order of removal.
