Rear License Trim Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).

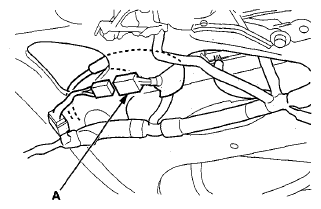

From inside the tailgate, disconnect the rearview camera connector (A).

Fig 1: Locating Rearview Camera Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Detach the hooks (A), then remove the rearview camera cover (B).

Fig 2: Locating Hooks And Rearview Camera Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

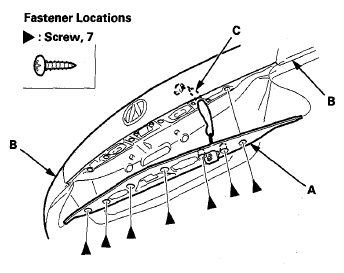

Remove the screws, and release both ends of the rear license trim (A) from the inner taillights (B), then remove the trim. Pull the rearview camera harness (C) out.

Fig 3: Locating Screws, Rear License Trim, Inner Taillights And Rearview Camera Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

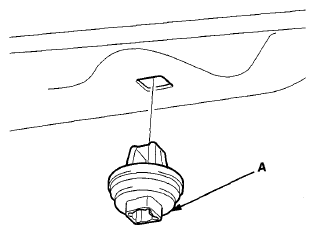

Remove the screw grommets (A) from the tailgate.
NOTE:
- If the screw grommets cracked excessively, replace them with new ones.
- If the screw grommets are damaged or stress-whitened, replace them with new ones.
- If a new rear license trim will be installed, remove all of remaining screw grommets on the tailgate and discard them. The screw grommets have been installed to the new rear license trim with screws.

  Fig 4: Locating Screw Grommet
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- Make sure the rearview camera connector is plugged in properly.

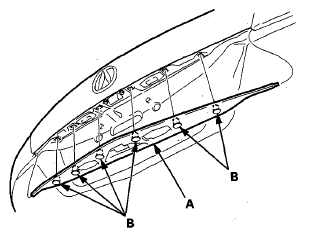

- If a new rear license trim assembly (A) is to be installed, hold the trim up, and fit all the screw grommets (B) into the holes in the tailgate, then push on the trim until the grommets snap into place.
  New rear license trim installation

  Fig 5: Locating New Rear License Trim Assembly And Screw Grommets
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
