Dynamic Damper Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inboard joint (see INBOARD JOINT SIDE  ).
  2. Remove the dynamic damper band (see step  1 on ).
  3. Remove the dynamic damper (A).

    Dynamic damper type 1

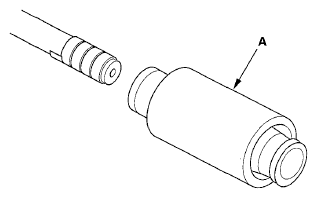

    Fig 1: Identifying Dynamic Damper Type 1
    G05958845Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Dynamic damper type 2

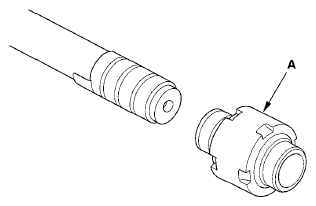

    Fig 2: Identifying Dynamic Damper Type 2
    G05958846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the new dynamic damper.
    NOTE: Be careful not to swap the dynamic dampers. Check the type of dynamic damper by its shape.
    DRIVESHAFT SPECIFICATION TABLE

    Model Left/Right Driveshaft Dynamic Damper (A) Type
    M/T Left -
    Right 1
    A/T Left 2
    Right 2
  5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.
    NOTE: Check the type of dynamic damper by its shape.

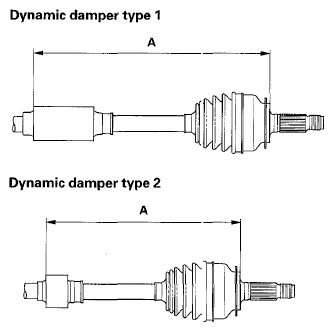

    Fig 3: Identifying Dynamic Damper Type Distance
    G05958847Courtesy of AMERICAN HONDA MOTOR CO., INC.
    DRIVESHAFT SPECIFICATION TABLE

    Model Left/Right Driveshaft Dynamic Damper Type Specified Distance (A)
    M/T Left - -
    Right 1 287-292 mm (11.30-11.50 in.)
    A/T Left 2 250.5-255.5 mm (9.86-10.06 in.)
    Right 2
  6. Install the dynamic damper band (see step  10 on ).
  7. Install the inboard joint (see INBOARD JOINT SIDE  ).
