Removal and Installation: Removal
- Put selector lever in
[N] position (CVT models).
- Remove shift knob (MT models). Refer to "REMOVAL AND INSTALLATION ".
- Remove front console cover.
- Remove front console cover with a flat-bladed screwdriver (A) wrapped in a tape.
- Pull up front console cover.
- Remove mounting nut of center console front side.
- Remove rear console cover.
- Remove rear console cover with hook and pick tool (A) as shown in the figure.
- Pull up rear console cover.
- Remove mounting nuts of center console rear side.
- Insert a deep-well socket wrench (A) to rotate adjusting nut to loosen cable sufficiently. Refer to "INSPECTION AND ADJUSTMENT ".
- Remove console mask.
- Pull upward to release console mask fixing clips from center console with remover tool (A).
- Disconnect seat heated switch harness connectors. (with seat heater)
- Lift up center console assembly back side, and then remove center console assembly.

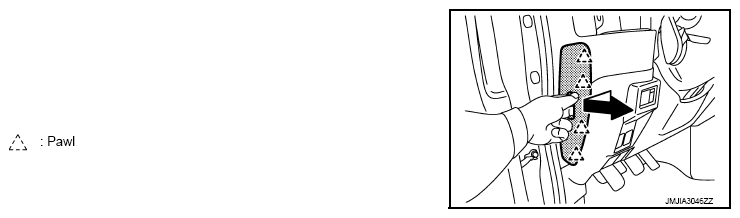

- Remove instrument side finisher LH.
Insert finger into instrument side finisher LH hole. Disengage the pawls while pulling in lateral direction, and pull back.

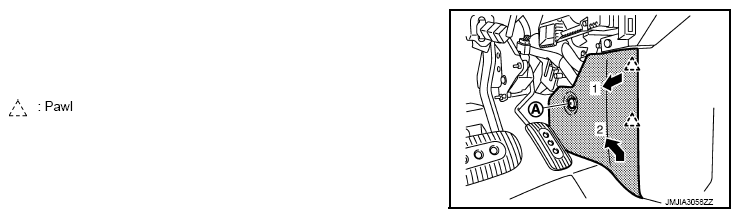

CAUTION: Disengage slowly so that pawls of instrument side finisher LH are not damaged. - Remove instrument lower panel LH.
- Remove hood opener and fuel lid opener lever. Refer to "REMOVAL AND INSTALLATION ".
- Remove fixing screw (A).
- Pull back instrument lower panel LH.
- Disconnect harness connectors, harness clip.
- Release data link connector (pawls) then remove it from instrument lower panel LH.
- Remove knee protector.
- Remove fixing bolts (A).
- Pull back knee protector.
- Remove driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
- Remove steering wheel. Refer to "REMOVAL AND INSTALLATION ".
- Remove the steering column cover.

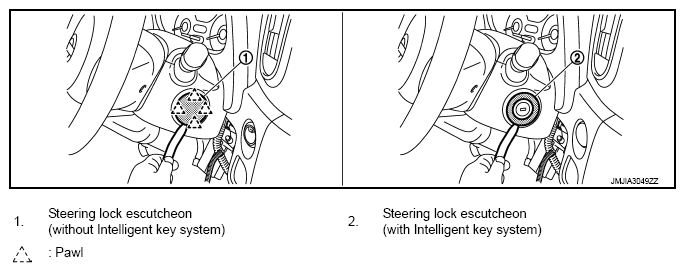

- Remove the steering lock escutcheon.
- Without intelligent key system: Remove steering lock escutcheon (1) using remover tool (A).
- With intelligent key system: Insert remover tool between steering lock escutcheon and steering column cover to disengage the pawls.
- Remove the steering column fixing screws (A).
- Pull up the steering column upper cover (3), and then disengage the pawls.
- Pull down the steering column lower cover (4), and then remove the steering column lower cover.
- Remove the steering lock escutcheon.
- Remove lighting & turn signal switch. Refer to "EXPLODED VIEW ".
- Remove wiper and washer switch. Refer to "EXPLODED VIEW ".

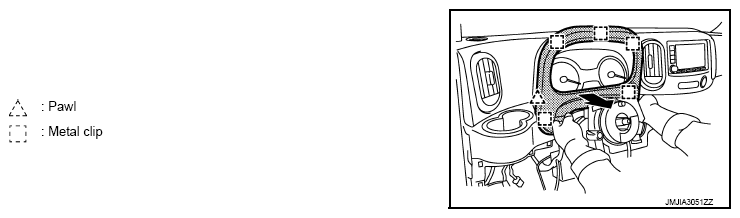

- Remove cluster lid A (rear).
- Pull back cluster lid A (rear) while holding the lower side and disengage the pawls and the metal clips under side.
- Remove the metal clips of cluster lid A (rear) upper side.
- Remove combination meter. Refer to "REMOVAL AND INSTALLATION ".
- Remove cluster lid A (front).

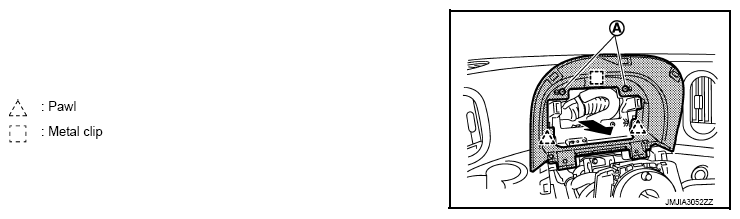

- Remove fixing screws (A).
- Pull back the cluster lid A (front), and then disengage the pawls and metal clips.
- Remove the body side welt LH. Refer to "REMOVAL AND INSTALLATION ".
- Remove the front pillar garnish LH. Refer to "REMOVAL AND INSTALLATION ".
- Remove A/C finisher.
- Intake door lever knob (with manual A/C). Refer to "REMOVAL AND INSTALLATION ".
- Pull up and back, and then remove hooks (2) from A/C finisher (1).
- Remove fixing screws (A), and then remove hook cover (3) from A/C finisher (1).
Courtesy of NISSAN NORTH AMERICA, INC.

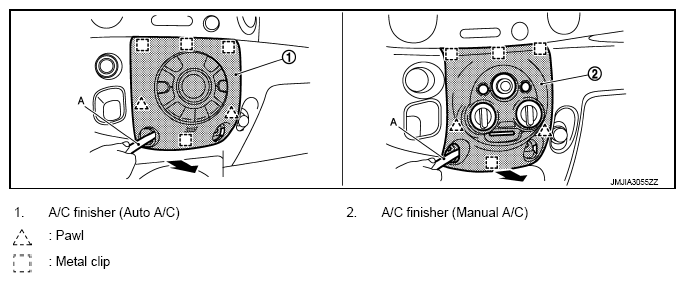

- Insert remover tool (A) through the hook cover mounting and disengage the pawls of the lower metal clips of the A/C finisher (1 or 2) lower side.
- Pull back the A/C finisher and disengage the metal clips upper side.
- Disconnect harness connectors. (with Auto A/C)
- Remove A/C control fixing screws (with Manual A/C). Refer to "EXPLODED VIEW ".
- Remove cluster lid C.
- Remove fixing screws (A).

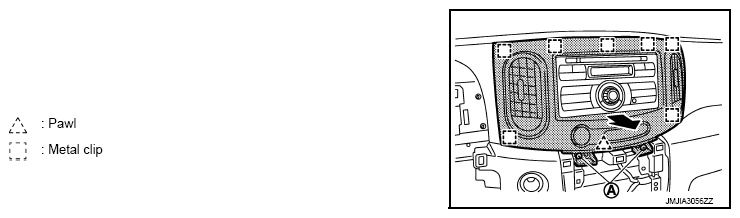

- Pull back the cluster lid C while holding the lower side and disengage the pawls and metal clips.
- Disconnect harness connectors.
- Remove audio unit, NAVI control unit, or audio mask.
- Audio unit: Refer to "REMOVAL AND INSTALLATION ".
- NAVI control unit: Refer to "REMOVAL AND INSTALLATION ".
- Audio mask: Remove fixing screws, and then remove audio mask.
- Remove switch panel finisher.

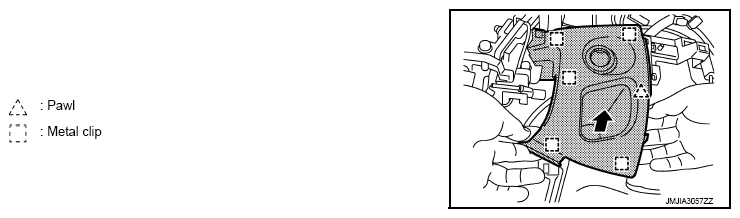

- Pull back the switch panel finisher while holding the lower side and disengage the pawls and metal clips.
- Disconnect harness connectors.

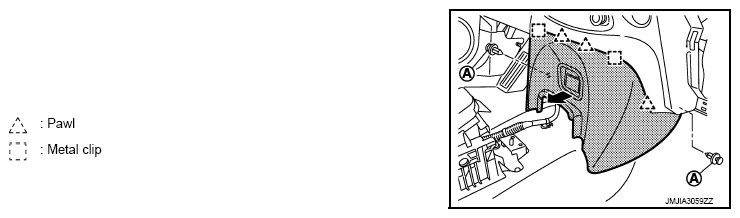

- Remove instrument lower cover LH.
- Remove fixing clip (A).

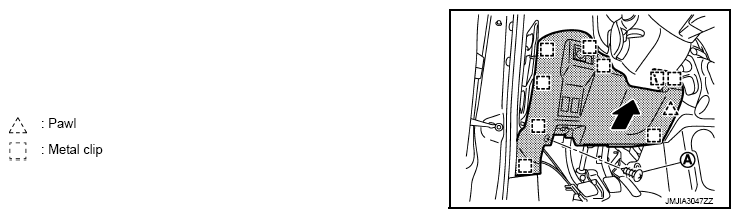

- Disengage fixing pawls, and then remove instrument lower cover LH as shown in the figure.
- Remove instrument lower cover.
- Remove fixing clip (A).
- Pull back instrument lower cover, and disengage the pawls and metal clips.
- Disconnect harness connectors.
- Remove instrument mask.
- Insert remover tool (A) between instrument mask and instrument panel assembly to disengage the pawls as shown in the figure.
- Disconnect harness connectors.

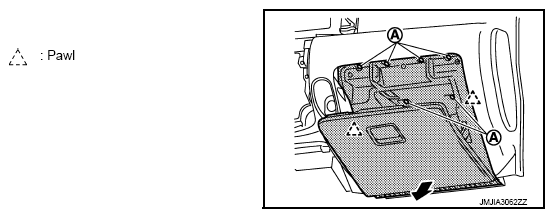

- Remove glove box cover assembly.

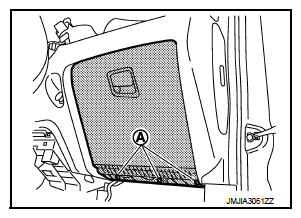

- Remove glove box cover assembly (lower side) fixing screws (A).
- Open the glove box lid.
- Remove glove box cover assembly (upper side) fixing screws (A).
- Pull back the glove box cover assembly while holding the lower side and disengage the pawls.CAUTION: Never pull the glove box lid.
- Disconnect harness connectors.
- Remove instrument side finisher RH.
- Insert remover tool (A) between instrument side finisher RH and instrument panel assembly to disengage the pawls as shown in the figure.
- Pull back instrument side finisher RH.
CAUTION: Disengage slowly so that pawls of instrument side finisher RH are not damaged. - Remove front passenger air bag module. Refer to "REMOVAL AND INSTALLATION ".
- Remove front body side welt RH. Refer to "REMOVAL AND INSTALLATION ".
- Remove front pillar garnish RH. Refer to "REMOVAL AND INSTALLATION ".
- Remove instrument panel assembly.
- Disconnect power socket harness connector. Refer to "REMOVAL AND INSTALLATION ".

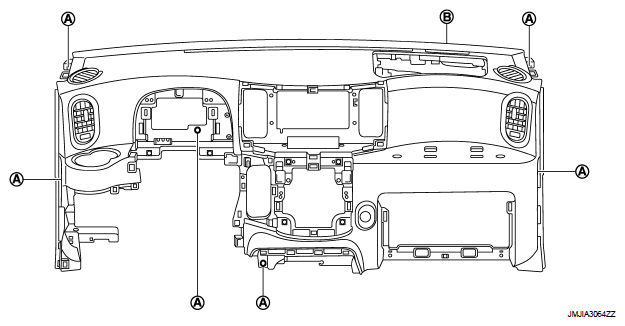

- Remove instrument panel assembly fixing screws (A) and bolts (B).
CAUTION: Cover tool with a shop cloth to prevent windshield glass from being damaged.
- Remove instrument panel assembly from passenger door opening portion.CAUTION:
- Cover select lever knob upper surface with a shop cloth to prevent it from being damaged.
- When removing instrument panel assembly, 2 workers are required to prevent it from dropping.
- Remove the following parts after removing the instrument panel assembly.
- Side ventilator grille: Refer to "SIDE VENTILATOR GRILLE: REMOVAL AND INSTALLATION ".
- Center ventilator duct: Refer to "CENTER VENTILATOR DUCT: REMOVAL AND INSTALLATION ".
- Side ventilator duct: Refer to "SIDE VENTILATOR DUCT: REMOVAL AND INSTALLATION ".
- Front defroster nozzle: Refer to "FRONT DEFROSTER NOZZLE: REMOVAL AND INSTALLATION ".
- Side defroster nozzle: Refer to "SIDE DEFROSTER NOZZLE: REMOVAL AND INSTALLATION ".
- Antenna feeder
- Audio system: Refer to "HARNESS LAYOUT ".
- Base audio with navigation: Refer to "FEEDER LAYOUT ".
- Power socket: Refer to "EXPLODED VIEW ".

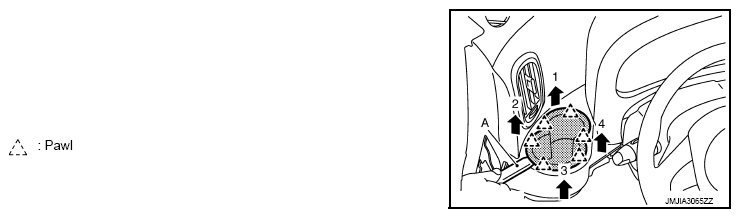

NOTE: Removal of Cup Holder.- Remove instrument lower panel LH.
- Disengage the cup holder front pawls from the back of the instrument panel assembly, in order from 1-2 as shown in the figure, and lift.
- Disengage the remaining clips, in order from 3-4 as shown in the figure, using the remover tool (A).
