Nissan-Datsun
>>
2012
>>
Cube Base
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heater & Air Conditioning Control System - Manual Air Conditioning
>>
Removal And Installation
>>
A/C Control
>>
Exploded View
Exploded View

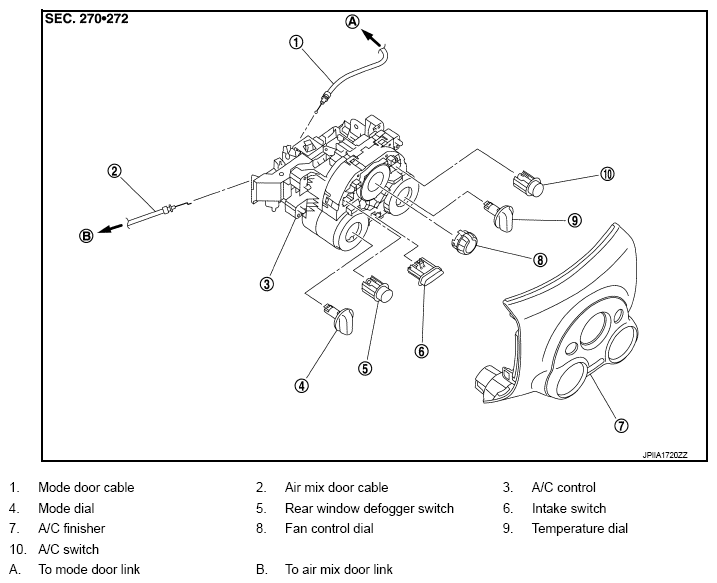

Fig 1: Exploded View Of A/C Control
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
