Inspection After Disassembly

Input Shaft and Gears

Check items below. If necessary, replace them with new ones.

• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears

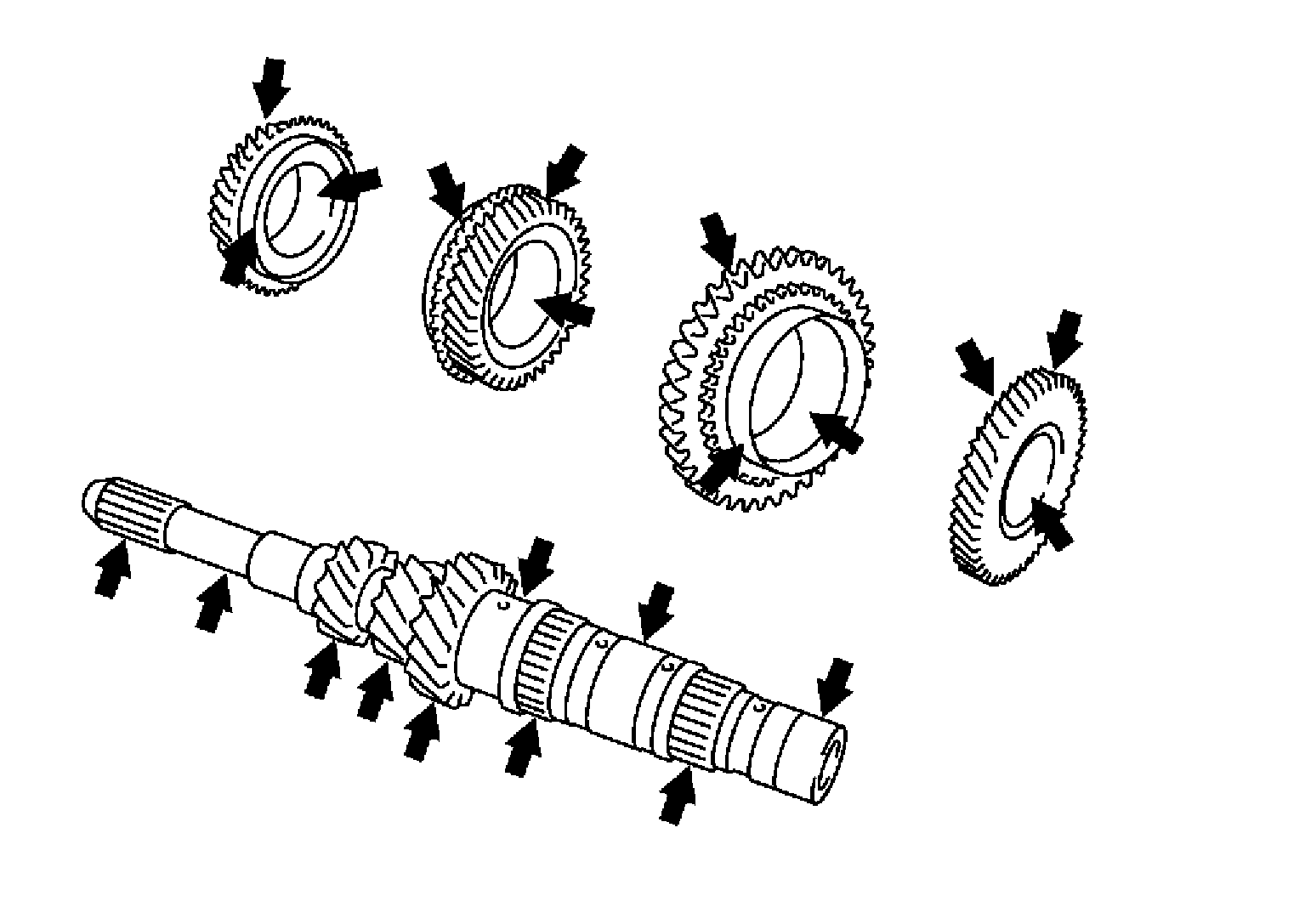

  Fig 1: Locating Inspection Areas Of Input Shaft & Gears

  Courtesy of NISSAN MOTOR CO., U.S.A.

Synchronizer

Check items below. If necessary, replace them with new ones.

• Damage and excessive wear of contact surfaces of coupling sleeve, synchronizer hub and shifting insert
• Coupling sleeve and synchronizer hub must move smoothly.
  Fig 2: Checking Synchronizer

  Courtesy of NISSAN MOTOR CO., U.S.A.
• If any crack, damage, or excessive wear is found on cam face of baulk ring or working face of insert, replace it.
  Fig 3: Locating Baulk Ring

  Courtesy of NISSAN MOTOR CO., U.S.A.

BAULK RING CLEARANCE

• Single-cone synchronizer (4th, 5th, and 6th)

  Push baulk ring on the cone and measure the clearance between baulk ring and cone. If measurement is below limit, replace it with a new one.

  Clearance

  Standard value :  Refer to "BAULK RING CLEARANCE ".

  Limit value :  Refer to "BAULK RING CLEARANCE ".

  Fig 4: Measuring Clearance Between Baulk Ring And Cone

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Double-cone synchronizer (3rd)

  Check the clearance between outer baulk ring, synchronizer cone, and inner baulk ring as follows.

  CAUTION: The clearances (A) and (B) are controlled with outer baulk ring, synchronizer cone, and inner baulk ring as a set. Replace them as a set if the clearances are outside the limit value.
  Fig 5: Checking Clearance Between Outer Baulk Ring, Synchronizer Cone, And Inner Baulk Ring

  Courtesy of NISSAN MOTOR CO., U.S.A.

1. Measure the clearance (A) at 2 points or more diagonally opposite using a dial indicator. And then calculate mean value.

   Tool number : ST30031000 (J-22912-01)

   Clearance (A)

   Standard value :  Refer to "BAULK RING CLEARANCE ".

   Limit value :  Refer to "BAULK RING CLEARANCE ".

   Fig 6: Measuring Clearance At Two Points Or More Diagonally Opposite Using Dial Indicator

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure the clearance (B) at 2 points or more diagonally opposite using a feeler gauge. And then calculate mean value.

   Clearance (B)

   Standard value :  Refer to "BAULK RING CLEARANCE ".

   Limit value :  Refer to "BAULK RING CLEARANCE ".

   Fig 7: Measuring Clearance At Two Points Or More Diagonally Opposite Using Feeler Gauge

   Courtesy of NISSAN MOTOR CO., U.S.A.

Bearing

Check items below. If necessary, replace them with new ones.

• Damage and rough rotation of bearing
  Fig 8: Checking Rough Rotation Of Bearing

  Courtesy of NISSAN MOTOR CO., U.S.A.
