Gear Ring: Disassembly

  1. Remove adapter case. Refer to "DISASSEMBLY ".
  2. Remove drive gear assembly from the transfer case.
  3. Remove gear ring bearing outer race (transfer case side) and gear ring bearing adjusting shim (transfer case side) from the transfer case. Refer to "DISASSEMBLY ".

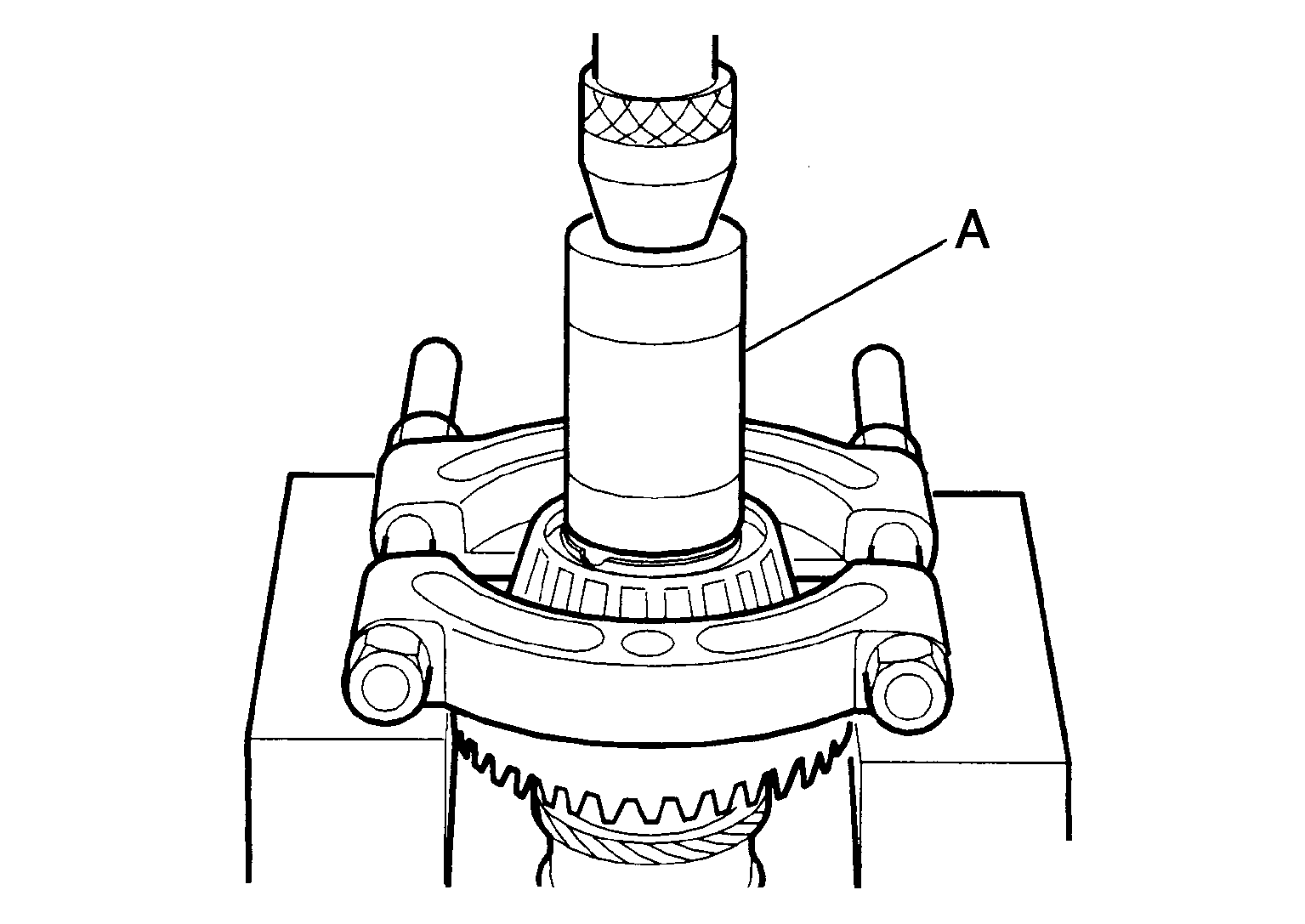

  4. Remove gear ring bearing inner race (adapter case side) from ring gear shaft with the drift (A) [SST: ST33200000 (J-26082)] and a replacer.
    Fig 1: Removing Drive Gear Assembly
    G05892777Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove gear ring bearing inner race (transfer case side) from gear ring with the drift (A) [SST: ST33061000 (J-8107-2)] and a puller.
    Fig 2: Removing Gear Ring Bearing Inner Race
    G05892778Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the drive gear mounting bolts.
  7. Lightly tap adapter case with a plastic hammer to remove drive gear from the gear ring.
    Fig 3: Tapping Drive Gear To Remove Drive Gear From Gear Ring
    G04921294Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove gear ring oil seal from the gear ring with a puller (A) [SST: KV381054S0 (J-34286)].
Fig 4: Removing Gear Ring Oil Seal
G05892780Courtesy of NISSAN MOTOR CO., U.S.A.
