Removal and Installation: Removal

  1. Remove rear propeller shaft. Refer to "EXPLODED VIEW ".
  2. Remove stabilizer bar. Refer to "EXPLODED VIEW ".
  3. Remove EVAP canister. Refer to "EXPLODED VIEW ".
  4. Disconnect rear drive shafts (final drive side). Refer to "EXPLODED VIEW ".
  5. Disconnect AWD solenoid harness connector.
  6. Remove rear final drive breather hose and electric controlled coupling breather hose.
  7. Support final drive assembly with a suitable jack.
  8. Remove rear final drive mounting nut (←) at rear suspension member.

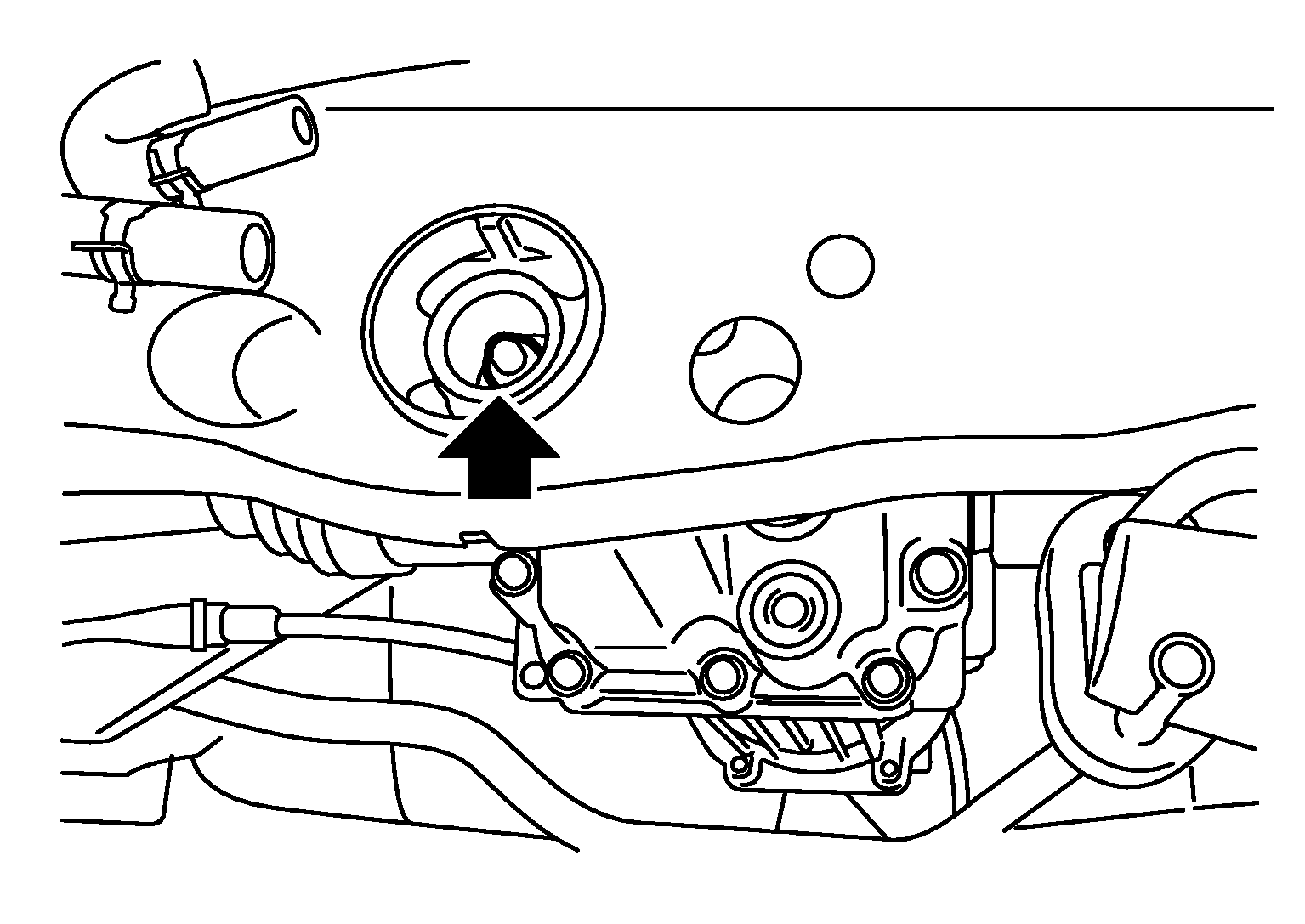

    Fig 1: Removing Rear Final Drive Mounting Nut
    G05892872Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove final drive mounting nuts and final drive mounting bolts with power tool. If necessary, remove final drive mounting bracket and washer with power tool.
    CAUTION: Secure final drive assembly to a suitable jack while removing it.
  10. Remove dynamic damper assembly.
Fig 2: Locating Final Drive Mounting Nuts
G05892873Courtesy of NISSAN MOTOR CO., U.S.A.
