Nissan-Datsun
>>
2009
>>
Murano LE
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case, Rear Propeller Shaft & Rear Final Drive
>>
Rear Propeller Shaft: 3F63A-EDJ75
>>
On-Vehicle Repair
>>
Rear Propeller Shaft
>>
Exploded View
Exploded View

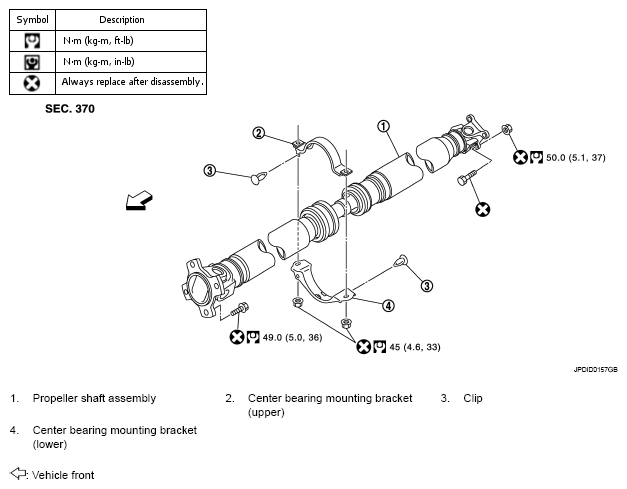

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
