Removal and Installation: Removal

  1. Remove rear propeller shaft. Refer to "EXPLODED VIEW ".
  2. Put matching mark on the thread edge of electric controlled coupling. The matching mark should be in line with the matching mark on companion flange.
    CAUTION: For matching mark, use paint. Never damage electric controlled coupling.
    Fig 1: Aligning Matching Mark Of Electric Controlled Coupling
    G04921349Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove companion flange lock nut, using a flange wrench (commercial service tool). Then remove companion flange.
    Fig 2: Removing Companion Flange Lock Nut
    G05370263Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove front oil seal from coupling cover, using a suitable tool.
CAUTION: Be careful not to damage coupling cover.

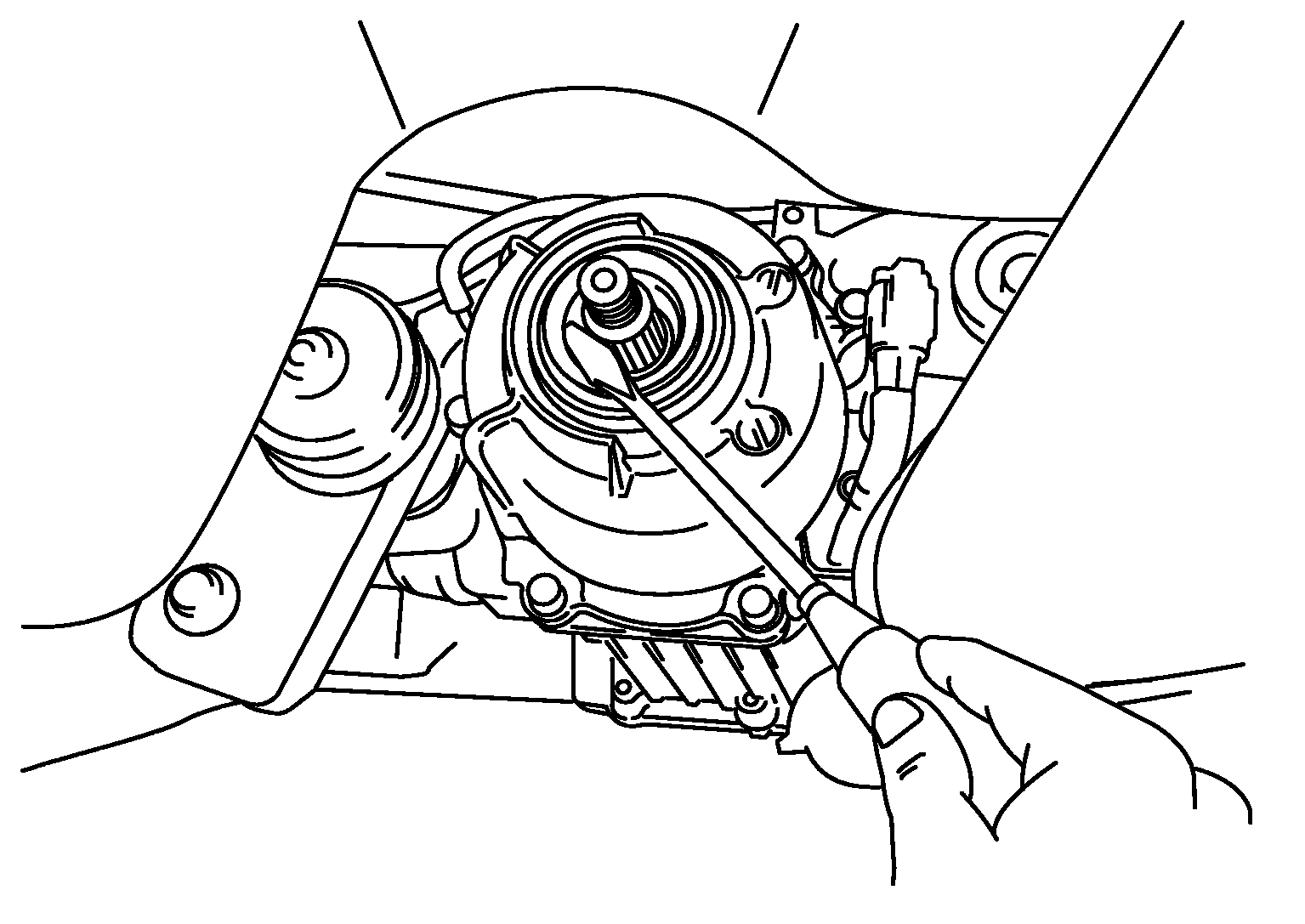

Fig 3: Removing Front Oil Seal Of Coupling Cover
G05370264Courtesy of NISSAN MOTOR CO., U.S.A.
