Removal and Installation: Removal

  1. Remove rear propeller shaft. Refer to "EXPLODED VIEW ".
  2. Disconnect AWD solenoid harness connector.
  3. Remove connector bracket.
  4. Put matching mark on the thread edge of electric controlled coupling. The matching mark should be in line with the matching mark on the companion flange.
    CAUTION: For matching mark, use paint. Never damage electric controlled coupling.
    NOTE: When replacing electric controlled coupling, matching mark is not necessary.
    Fig 1: Aligning Matching Mark Of Electric Controlled Coupling
    G04921349Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove companion flange lock nut, using a flange wrench (commercial service tool).

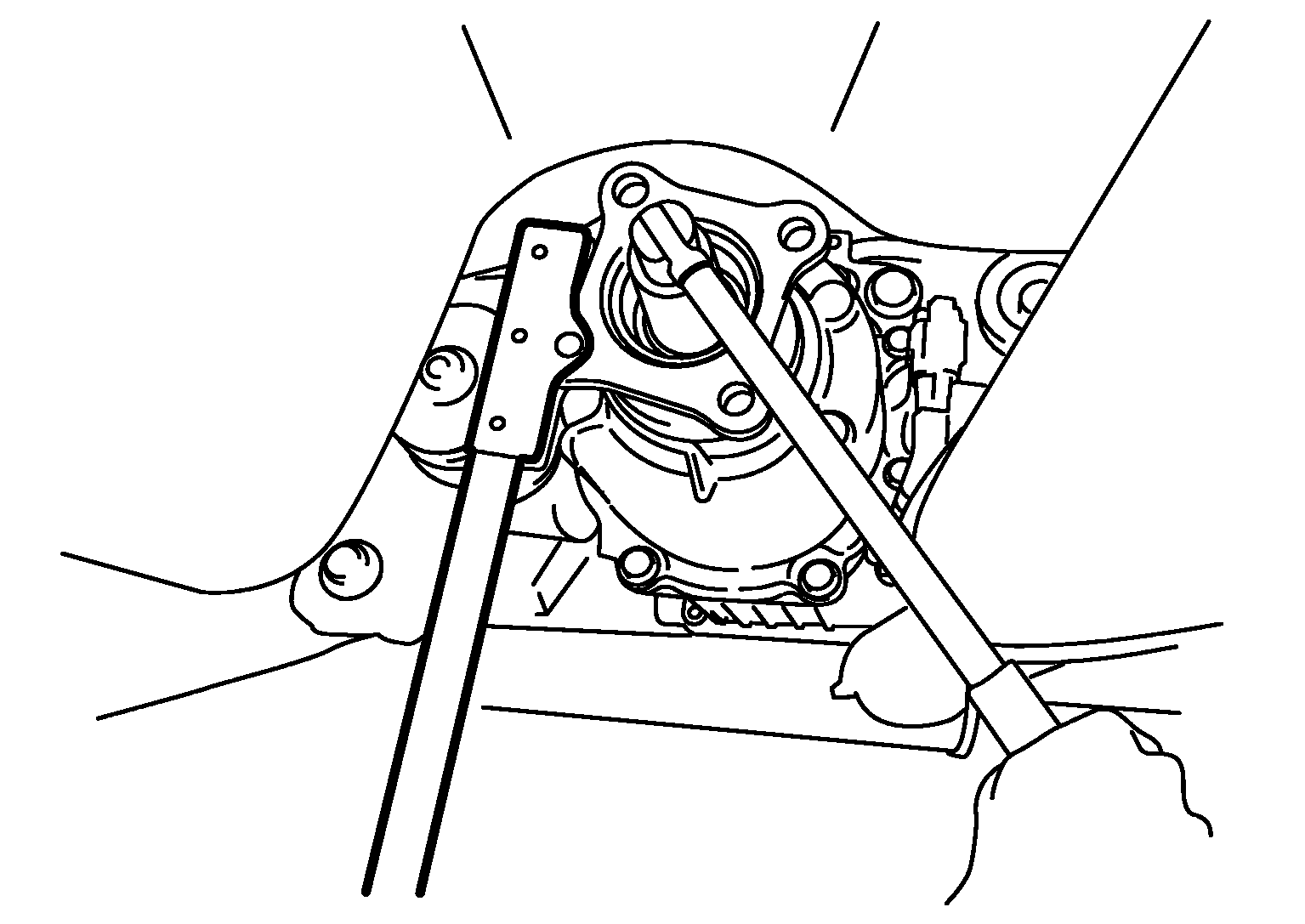

    Fig 2: Removing Companion Flange Lock Nut
    G05370263Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove companion flange.
  7. Remove electric controlled coupling breather hose from coupling cover.
    Fig 3: Identifying Coupling Cover
    G04921358Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove coupling cover with electric controlled coupling from final drive assembly.
  9. Remove electric controlled coupling from coupling cover.
  10. Remove AWD solenoid harness.
  11. Remove front oil seal from coupling cover, using a suitable tool.
    CAUTION: Be careful not to damage coupling cover.
    Fig 4: Identifying Front Oil Seal From Coupling Cover
    G04921382Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove center oil seal from final drive assembly.
