Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install packing (1) and master cylinder assembly (2) to the vehicle.

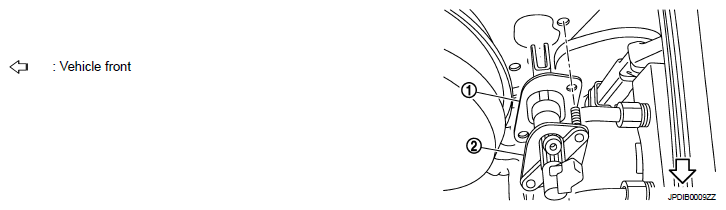

    Fig 1: Identifying Packing And Master Cylinder Assembly
    G06051845Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Never damage packing, brake booster, and dash lower.
    • Be careful with the orientation of packing. The figure is the view from the vehicle forward.
  2. Tighten master cylinder mounting nuts to the specified torque.
  3. Connect clutch tube to master cylinder and then temporarily tighten clutch tube flare nut using a flare nut wrench.
  4. Set clevis to clutch pedal.
  5. Apply recommended grease to clevis pin and then install clevis pin to clevis.
    Fig 2: Identifying Clevis Pin
    G05224222Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install snap pin to clevis pin.
  7. Tighten clutch tube flare nut to the specified torque using a flare nut torque wrench [Commercial service tool]. Refer to "EXPLODED VIEW ".
    CAUTION: Never damage flare nut and clutch tube.
  8. Install washers to reservoir tank mounting bolts.
  9. Install bracket to reservoir tank and then tighten reservoir tank mounting bolts to the specified torque.
  10. Install hose (1) and clips to reservoir tank (2) and master cylinder (3).
    Fig 3: Identifying Hose, Reservoir Tank And Master Cylinder
    G06051847Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Set hose with painted mark facing upward.
  11. Install reservoir tank assembly to the vehicle and then tighten mounting bolts (<==) to the specified torque.

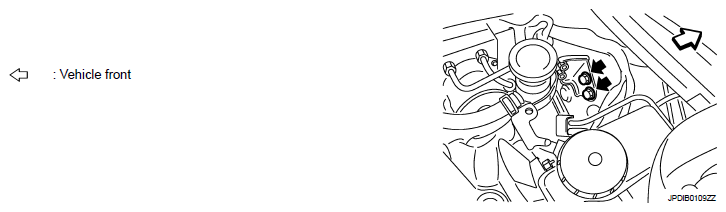

    Fig 4: Locating Mounting Bolts
    G06051848Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install brake booster pressure sensor. Refer to "REMOVAL AND INSTALLATION ".
  13. Install brake master cylinder cover. Refer to "REMOVAL AND INSTALLATION ".
  14. Fill clutch fluid. Refer to "REFILLING ".
