Removal and Installation of Valve Oil Seal: Removal

  1. Remove camshaft and valve lifter. Refer to REMOVAL .
  2. Rotate crankshaft, and set piston whose oil seal is to removed to top dead center. This prevents valve from dropping inside cylinder.
    CAUTION: When rotating crankshaft, be careful to avoid scarring the front cover with the timing chain.
  3. Remove valve collet, valve spring retainer and valve spring using Tool.

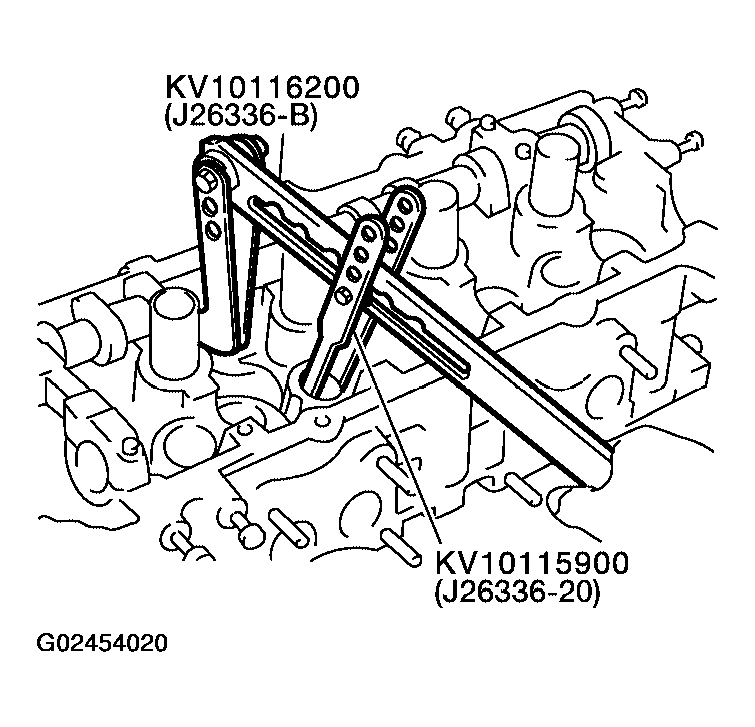

    Fig 1: Removing Valve Collet, Valve Spring Retainer & Valve Spring
    G02454020Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove valve oil seal using Tool.
    Fig 2: Removing Valve Oil Seal
    G02454021Courtesy of NISSAN MOTOR CO., U.S.A.
