Brake Pedal Height
- Check brake pedal free height using Tool, and adjust if necessary.
- Tool number: - (J-46532)

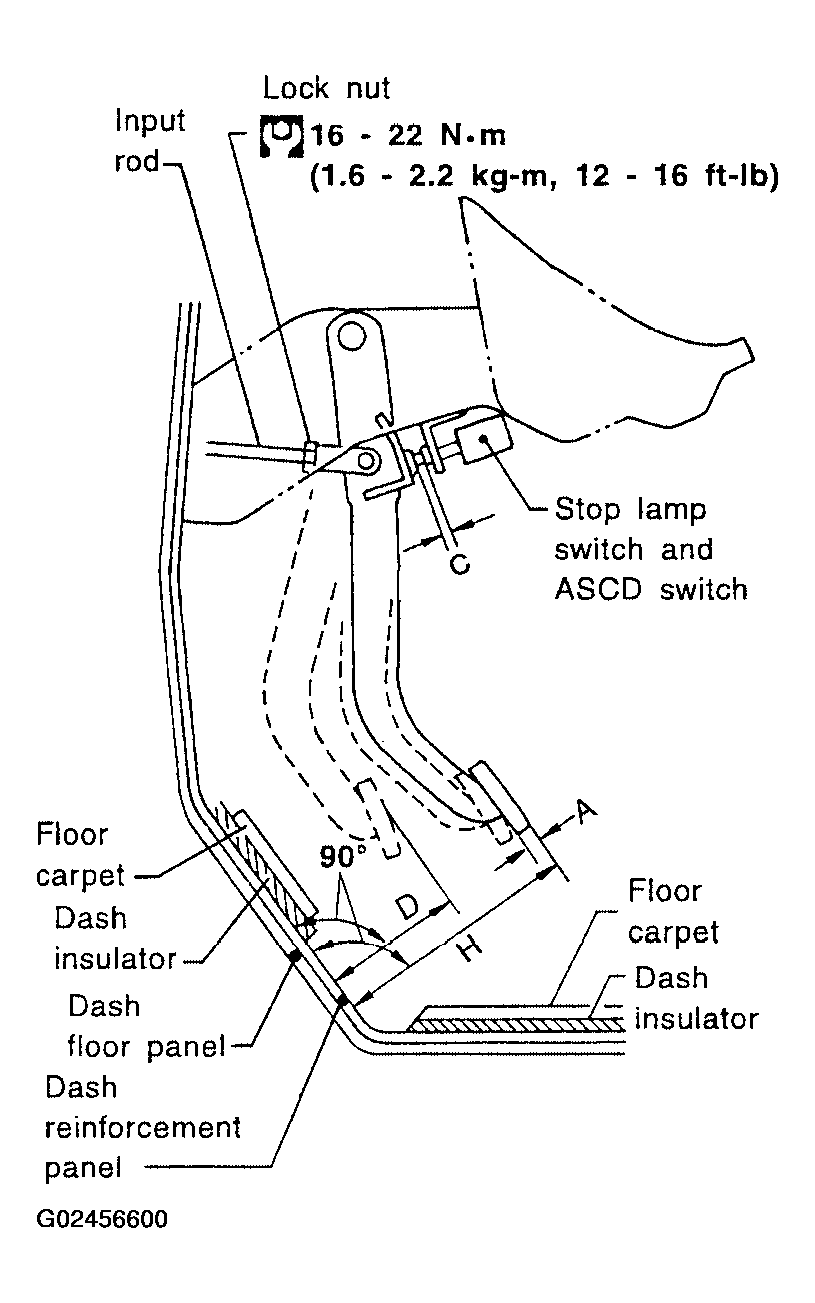

- H: Free height Refer to BRAKE PEDAL .
- D: Depressed height 90 mm (3.54 in)
- Under force of 490 N (50 kg, 110 lb) with engine running
- A: Pedal free play at pedal pad 1.0 - 3.0 mm (0.039 - 0.118 in)
- Loosen lock nut and adjust pedal free height by turning brake booster input rod. Then tighten lock nut.
- Check pedal free play.CAUTION: Make sure that stop lamps go off when pedal is released.
- Check brake pedal's depressed height while engine is running. If lower than specification, check brake system for leaks, accumulation of air or any damage to components (master cylinder, wheel cylinder, etc.); then make necessary repairs.
