Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Brake System
>>
Service Data And Specifications (SDS)
>>
Brake Pedal
Brake Pedal

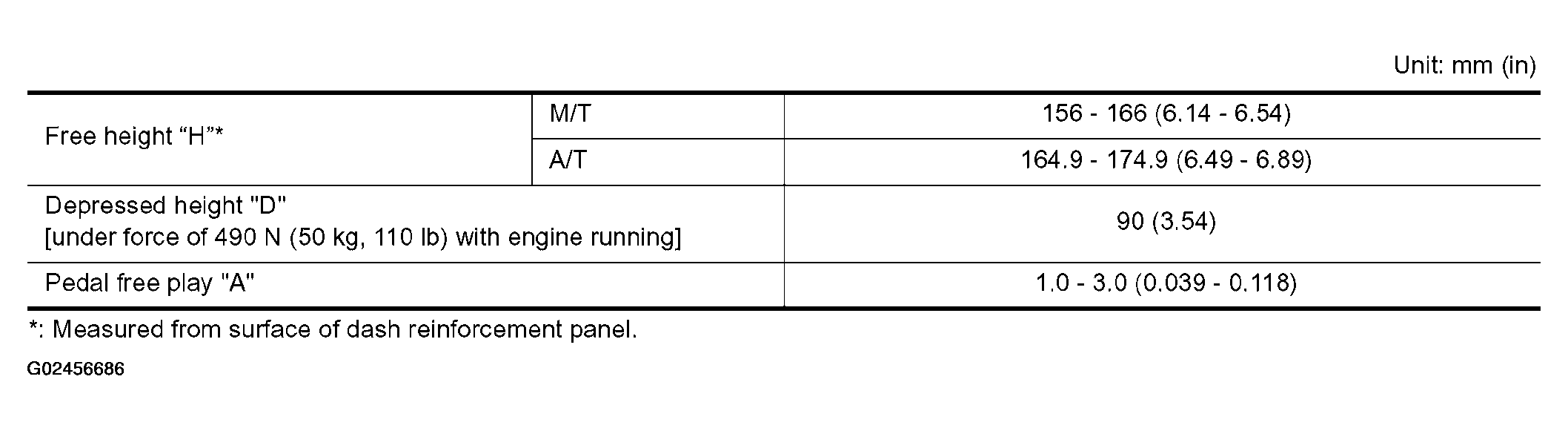

Fig 1: Brake Pedal Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
