(P) Cluster Lid C

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws with power tool.
    2. CAUTION:
    • When removing, place clothes onto surrounding parts to protect A/T device and center console from damage.
    • Unit is heavy [approximately 7 kg (15 lb)]. Be careful not to pinch your fingers.

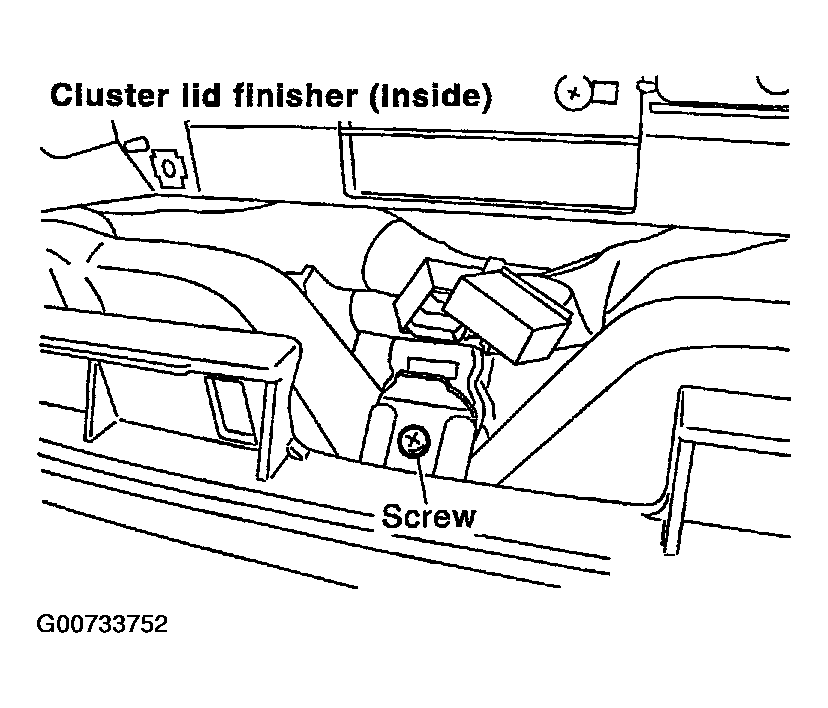

    Fig 1: Locating Cluster Lid C Fastener
    G00733752Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disconnect harness connector of display unit and audio unit, and remove it.
